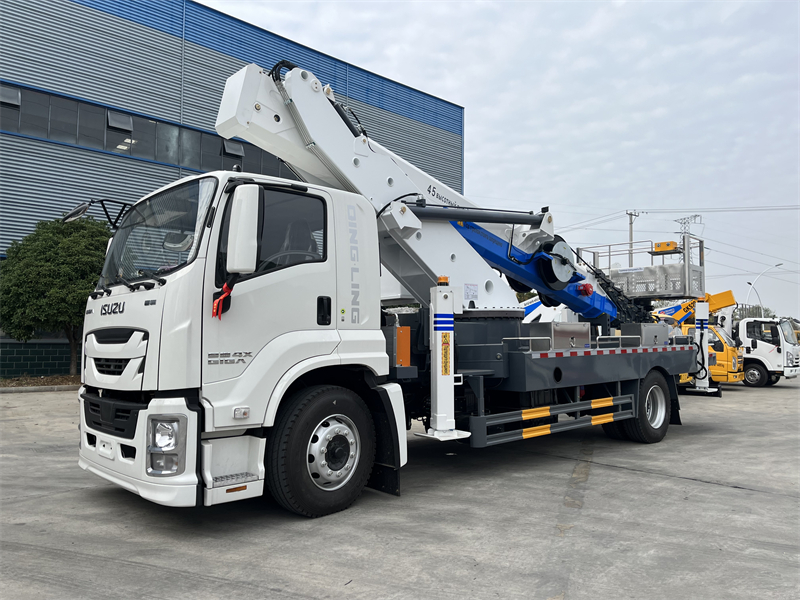

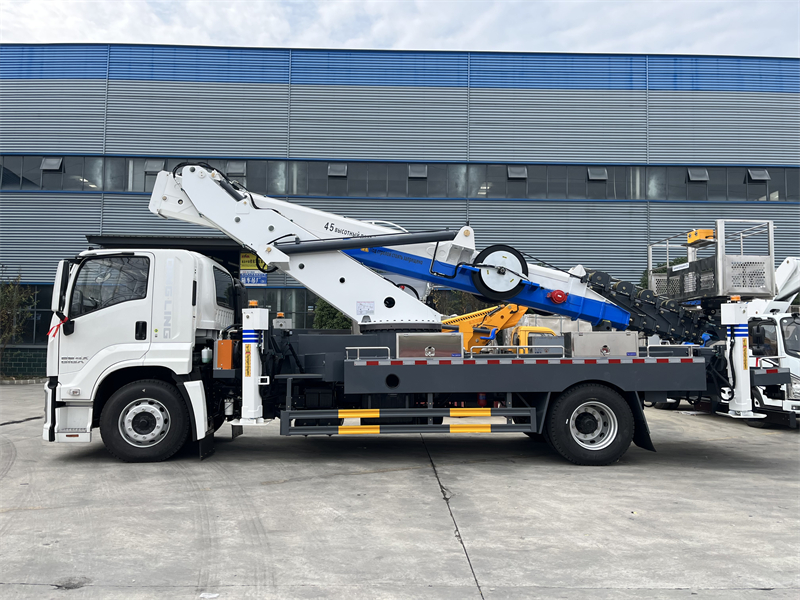

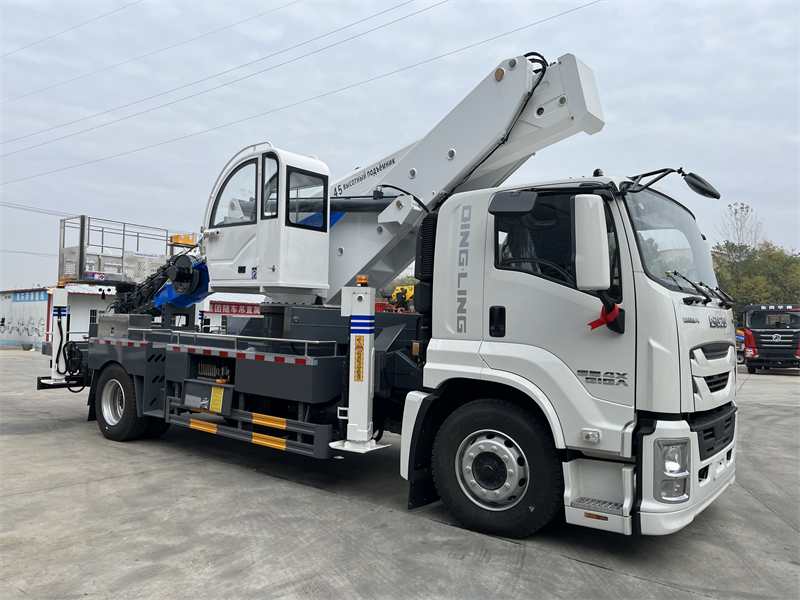

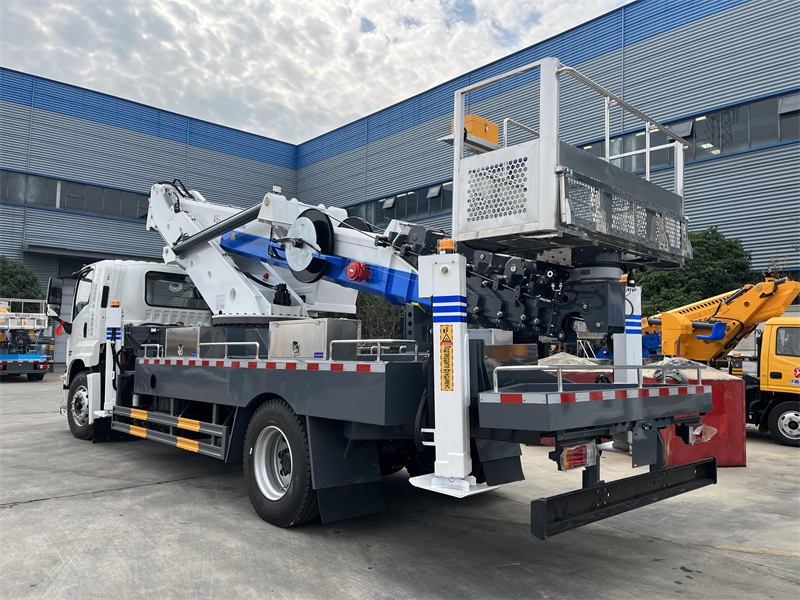

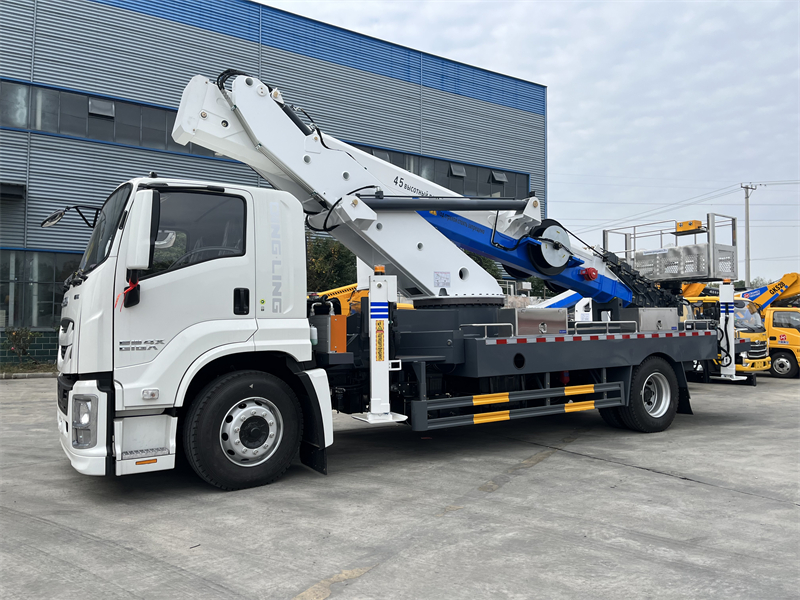

ISUZU GIGA 4x2 45m Aerial Lift Truck Hydraulic Telescopic Boom Bucket Platform

Maximum working height: 35-45M

Chassis: ISUZU GIGA, 4x2

Emission standard: Euro 5, Euro 6

Steering wheel: LHD

Product description

Aerial work vehicles are divided into folding arm aerial work vehicles, telescopic arm aerial work vehicles and aerial platform lift vehicles.

Aerial work vehicle is also called aerial platform operation truck, high-altitude operation truck, aerial work platform truck, aerial bucket lift truck, overhead working truck and high-altitude work vehicle, etc. It is special purposed truck of transporting workers and equipment to operating in the high aerial. It could reach the different demand of maintenance streetlight, traffic light, garden operation, communication operation, signboard setting/cleaning and other high aerial works.

Specifications of ISUZU GIGA 4x2 45m Aerial Lift Truck Hydraulic Telescopic Boom Bucket Platform:

Items	Descriptions	Specifications and Types
Vehicle parameters	Vehicle name	ISUZU 45m aerial work platfrom truck
	Cabin	VH-flat head, single row
	Persons in cab	3
	Drive Type	4×2
	Overall Dimensions (LWH)	9840×2500×3940mm
	Gross weight	19340(Kg)
	wheelbase	5550(mm)
	Front/Rare suspension	1335/1585(mm)
	Approaching/Departure Angle	17/10(°)
	Max speed	105 (km/h)
Engine	Brand/Model	4HK1-TCG60
	Power	151(Kw)
	Horsepower	205(HP)
	Displacement	5.193(L)
	Fuel type	Diesel
	Emission standard	Euro VI
Axles	Front axle loading	6.3T
Axles	Rear axle loading	13T
Tire type/number		295/80R22.5 18PR PCS
Brake		Air brake
Color		Customer's request
Upper body configuration	Platform Working Height	45 meters
	Boom type	Six-section hexagonal arms, synchronous telescopic
	Outrigger	4 pcs, front V + rear V type hydraulic outriggers Span:8500mm horizontal, 8600mm vertical
	Bucket	1600×700×1000mm(LWH), 200kg load
	Slewing device	Two-way 360° continuous slewing, 360°slewing basket
	Operating system	Up and down operation both on ground and in bucket, Wireless remote control + platform operation + manual 3 groups of operating system + manual emergency system
	Emergency device	Yes
