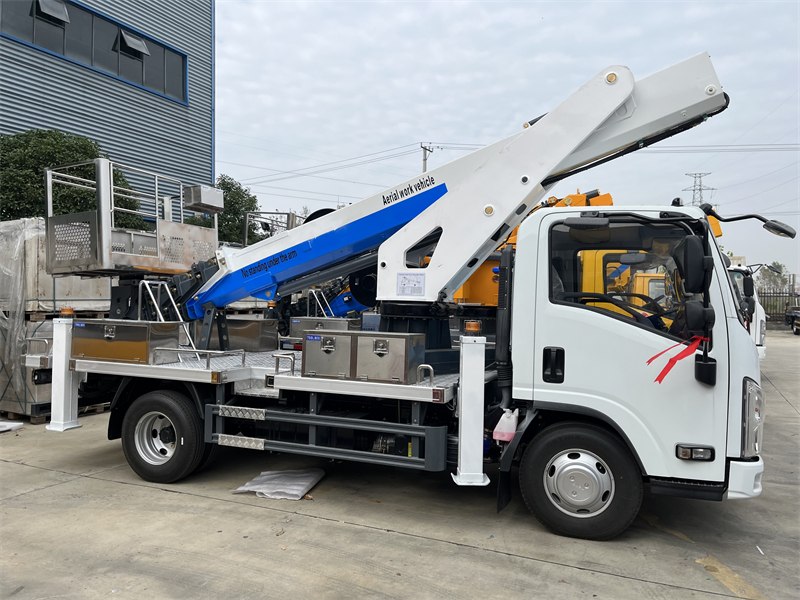

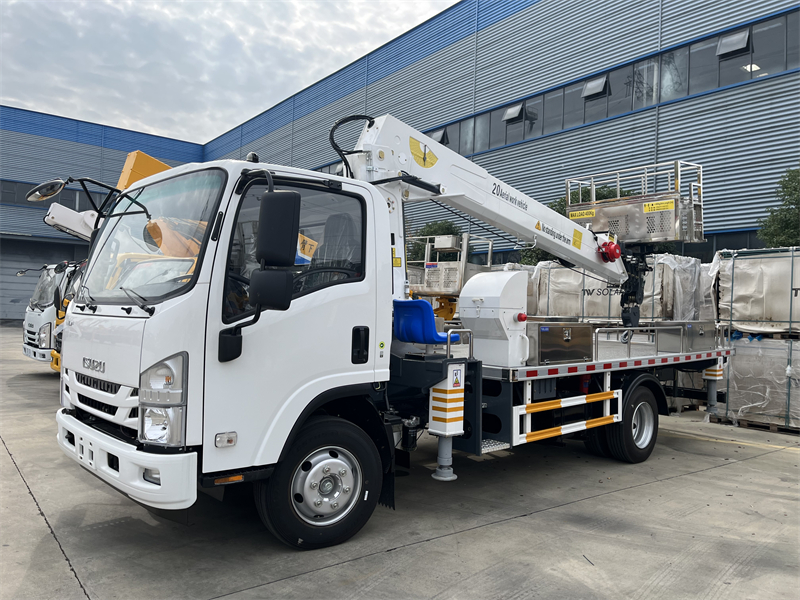

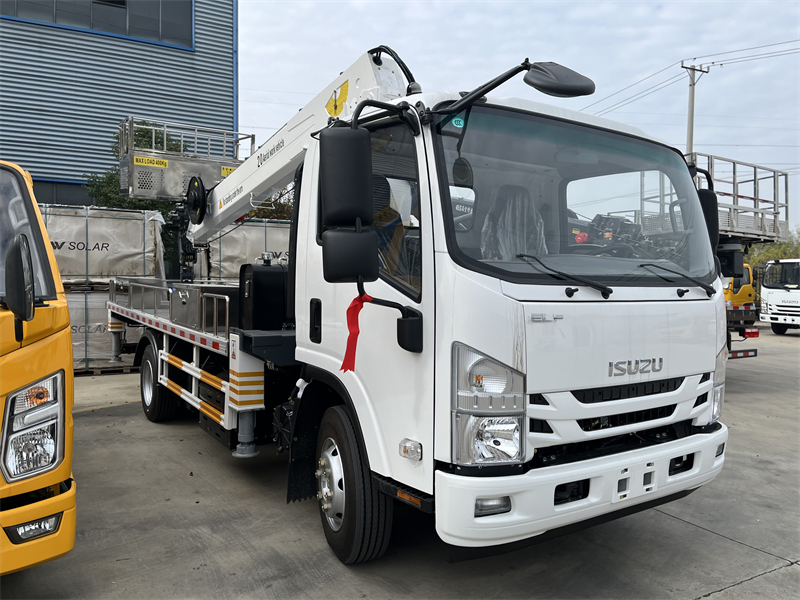

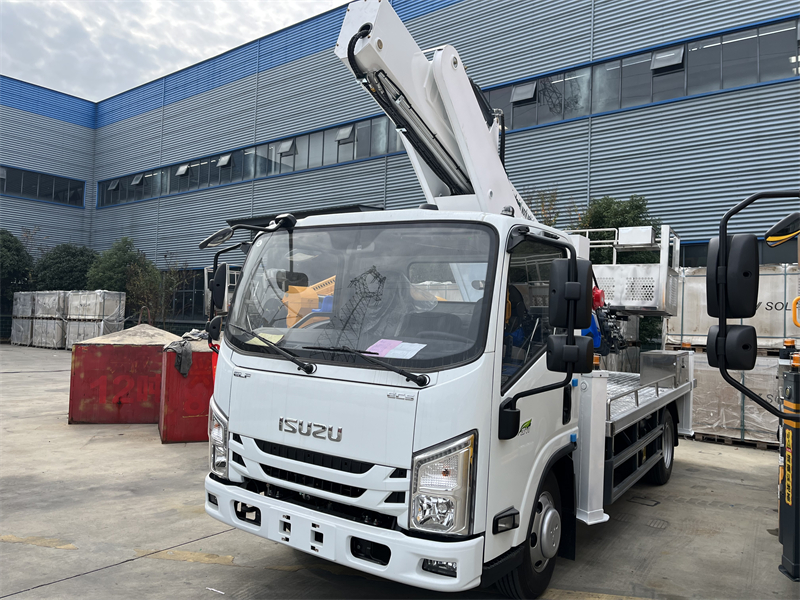

ISUZU 20-25m Aerial Work Platform Bucket 4x2 Telescopic Boom Aerial Work Truck

Maximum working height: 20-25M

Chassis: ISUZU KV100, 4x2

Emission standard: Euro 5, Euro 6

Steering wheel: LHD / RHD

Product description

Aerial work vehicles are divided into folding arm aerial work vehicles, telescopic arm aerial work vehicles and aerial platform lift vehicles.

Aerial work vehicle is also called aerial platform operation truck, high-altitude operation truck, aerial work platform truck, aerial bucket lift truck, overhead working truck and high-altitude work vehicle, etc. It is special purposed truck of transporting workers and equipment to operating in the high aerial. It could reach the different demand of maintenance streetlight, traffic light, garden operation, communication operation, signboard setting/cleaning and other high aerial works.

Specifications of ISUZU 20-25m Aerial Work Platform Bucket 4x2 Telescopic Boom Aerial Work Truck:

Item	Unit	Parameter
Vehicle model		ISUZU 4x2 LHD 30M Aerial Platform Truck
Cab		2 persons, ordinary seat, with air conditioner
Model no.		CLW5040JGKQL6
Overall dimensions	mm	599820903100
Gross weight	Kg	4495
Curb weight	Kg	4365
Wheel base	Mm	3360
F/R suspension	Mm	1095/1543
Axle load	kg	1840/4000
Exhaust/kw	ml/kw	2998/96
Max speed	km/h	105
Fuel type	Diesel, Euro V	Engine	4KB1-TCG60
Number of axles	2	Traction system	4x2
Number of tires	6+1	Tire specification	7.00R16LT
Transmission	5-speed with over drive	Operation control system	Electrically hydraulic control
Electric system	24v	Pax allowed in cab	2
Working platform	High-strength stainless steel
Platform dimension	1400x700x1200MM
Power take-off system	Mechanical operation
Boom form	Four-section hexagonal working arm, synchronous telescopic
Rotary device	360 degrees continuous rotation
Outriggers	Front V and rear V-shaped outriggers, individually adjustable (control)
Operation	Electrically controlled operation, equipped with manual emergency operation.
