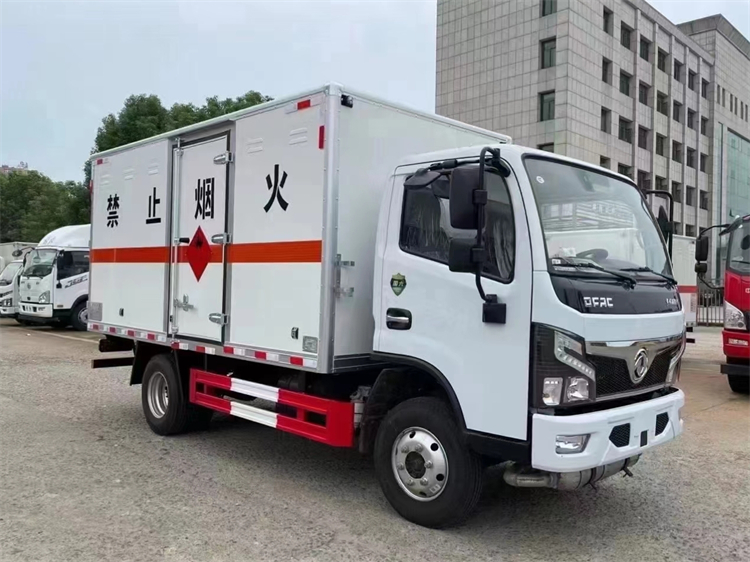

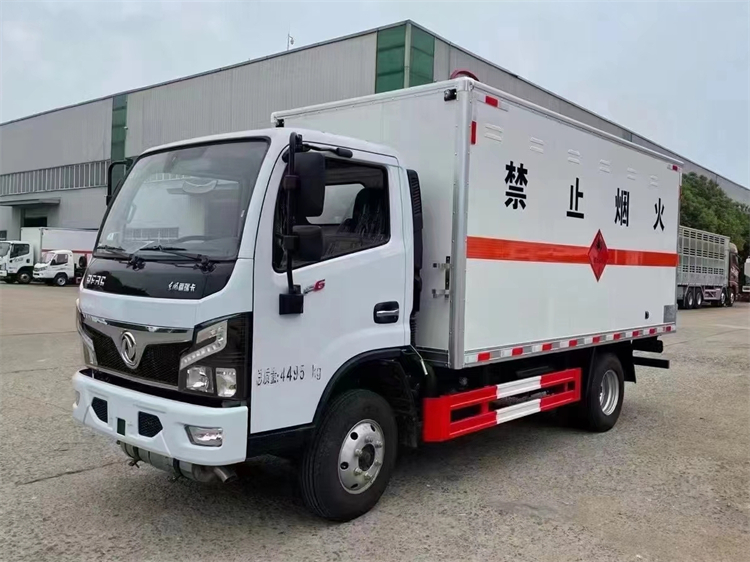

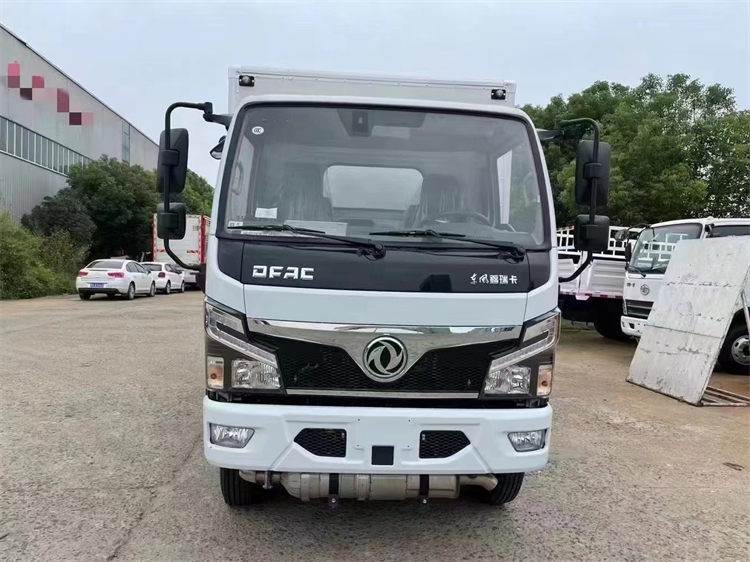

Dongfeng 4x2 4.1m Explosive Transport Truck

Loading capacity: 3-5 tons

Box inner dimension: 4100*2000*1850 mm


Chassis: Dongfeng DFAC, 4x2

Transmission: 5-speed manual


Emission standard: Euro 3, Euro 4, Euro 5, Euro 6

Steering wheel: LHD /RHD

Inquire Now Next Product
Product parameter

Explosive transport truck, also known as explosion transport vehicle, explosive equipment transport vehicle, blasting equipment transporter, detonator transport vehicle, dangerous goods transport truck, etc. It is a kind of special cargo truck with box structure, which can be used for explosives, detonators, fireworks and firecrackers transportation,etc. It have the feature of high intensity ,fire retardant, waterproof, prevent electrostatic spark, fireworks alarm and burglar alarm, etc.


Specifications of Dongfeng 4x2 4.1m Explosive Transport Truck:

Item

Unit

Parameter

Product name

Dongfeng 4x2 explosive transport truck

Vehicle model

CLW5040XQYE6

Chassis model

EQ1045SJ3CDFWXP

Wheel base

mm

3308

Overall dimensions

5995*2130*2950

Box dimensions

4100*2000*1850

GVW

kg

Appro×4495

Curb weight

Appro×3400

Payload

Appro×965

Engine

Model

D20TCIF1

Manufacturer

Kunming Yunnei Power Co., Ltd

Exhaust/kw

1999/93

Emission standard

Euro VI

Max speed

km/h

90

Traction system

4x2

Transmission

5-speed with over drive

Tire specification

7.00R16

Number of axles

2

Drivers cab

Single row flat cab, with A/C, ABS, electric windows

Remark

Transport of explosives, detonators, fireworks and firecrackers, etc


Cargo van box configuration:


1. Van body material: High quality large shaped steel pipe skeleton, exterior decoration of cold-rolled steel plate, interior quality aluminum alloy plate, filled with 5cm thick insulation and flame retardant material in the middle.


2. There are rainproof natural ventilation windows above both sides of the van, with flame retardant and static conductive adhesive plates laid at the bottom. Fixed pull rings are installed on both sides of inside the van, and goods are bundled with straps to avoid movement.


3. The top of inside the van is equipped with a smoke detector, and an anti-theft alarm is installed above the door frame. The outer side of the compartment is equipped with a clearance light and a fire extinguisher bracket, and is equipped with two fire extinguishers.


4. There are words such as "No Smoking" and "Explosion" on the van body, and reflective signs are affixed around the body. There are safety notices and dangerous goods signs posted on the back door.


5. Install two anti-static adhesive tapes at the rear of the vehicle, and install safety triangle lights on the top of the cab.


6. With side doors and galvanized hardware.
