Mobile fuel truck is also called mobile fuel tanker, mobile fueling truck, fuel dispenser truck, refuel truck, mobile refueling truck. It is widely used for mobile refuel oil, the tanker is made of high quality carbon steel plate, with oil pump, fuel dispenser, 15m reel and oil gun, we also can add the flow meter, oil and gas recovery system, bottom loading system, Level gauge, European standard manhole cover and emergency valves according to your requirements.
Specifications of JMC 4x2 5000L Mobile Fuel Truck:
|
Item |
unit |
parameter |
||
|
Vehicle model |
CLW5040GJYJ3 Mobile Fuel Truck |
|||
|
Chassis model |
JX1043 |
|||
|
Overall dimensions |
mm |
5800×1960×2400 |
||
|
Tank capacity |
L |
5000 |
||
|
Mass in working order |
kg |
Appro×3365 |
||
|
Body internal dimensions |
mm |
3100×1750×1150 |
||
|
Wheel base |
3360 |
|||
|
F/R track base |
1385/1425 |
|||
|
Approach/departure angle |
° |
18/12 |
||
|
Exhaust/kw |
ml/kw |
2771/62 |
||
|
Max speed |
km/h |
90 |
||
|
Tire specification |
7.00R16 |
Engine type |
JX493ZQ4A |
|
|
Traction system |
4×2 |
Transmission |
5-speed with over drive |
|
|
Number of axles |
2 |
Electric system |
12v |
|
|
Operation control system |
Electrically hydraulic control |
Allowable passengers in cab |
3 |
|
|
Equipment |

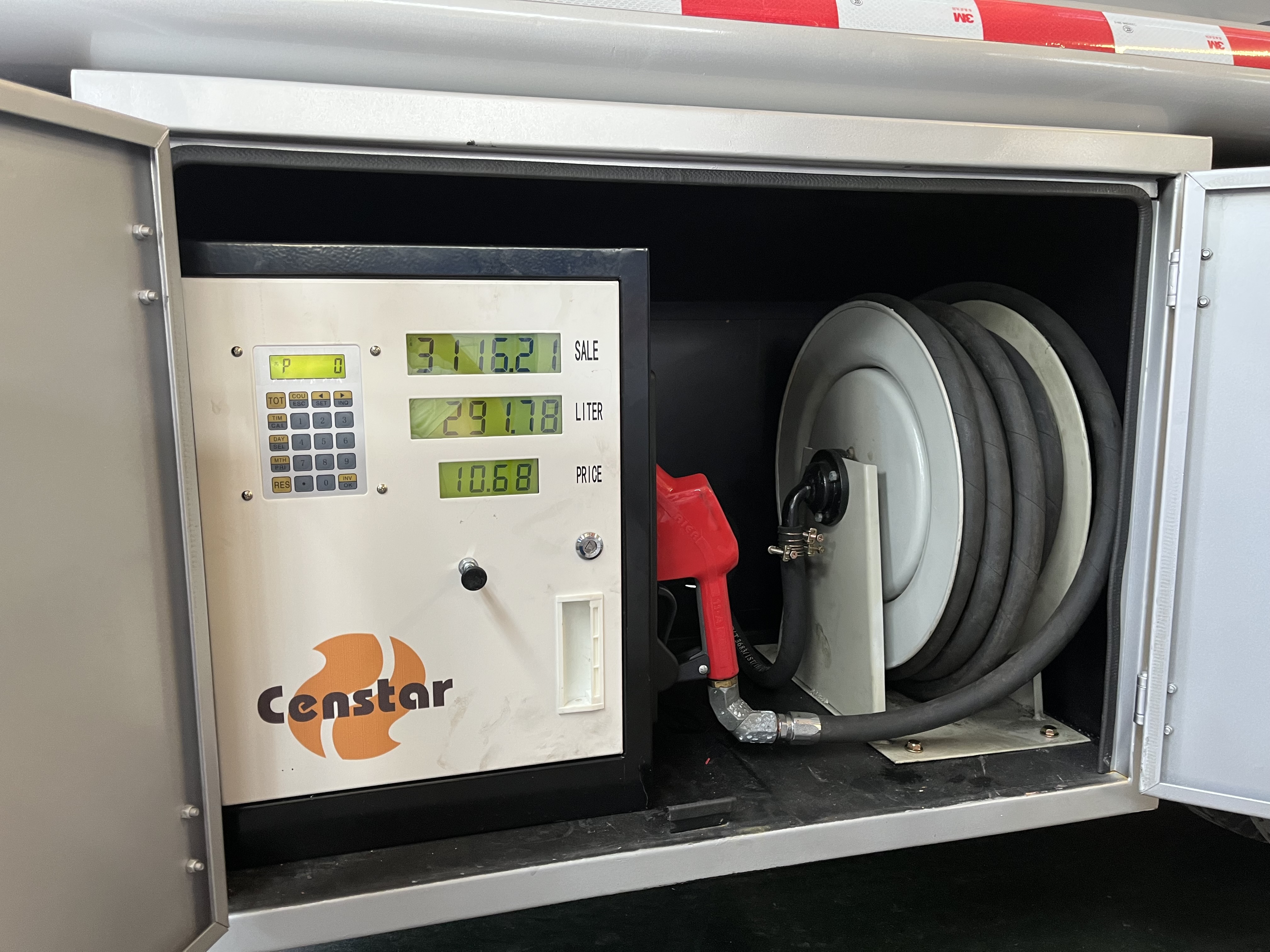

Equipped with 4mm carbon steel tanker; Equipped with the oil pump, fuel dispenser,15 meter reel and oil nozzle; Equipped with 1 European standard aluminum emergency valve and 1 manhole cover. Equipped with fire extinguisher, ladder, grounding wire. |
|||
|
Driver’s cab |
Right hand drive. With the power steering, without A/C. |
|||
|
Engine |
JiangLing JMC diesel engine, Euro II, 84hp |
|||
|
Production cycle |
40-45 working days |
|||
|
Warranty |
12 month, from the date of supply |
|||
