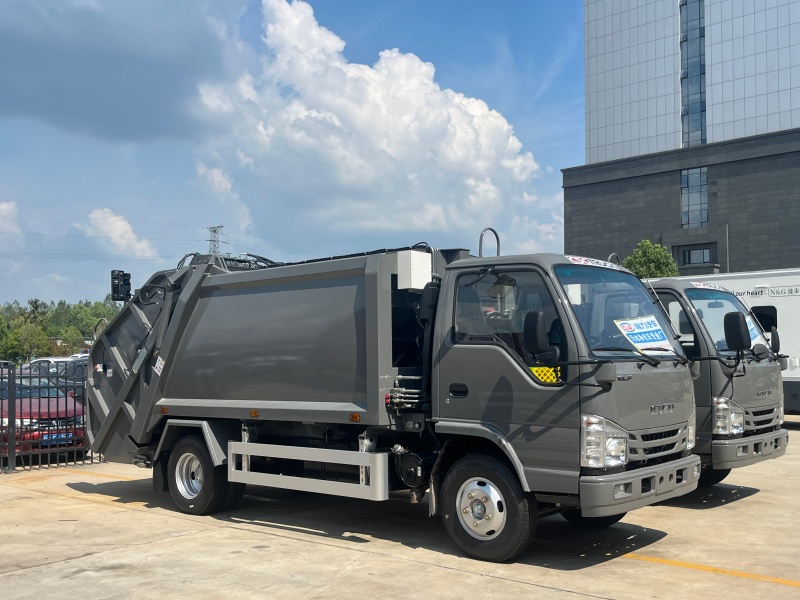

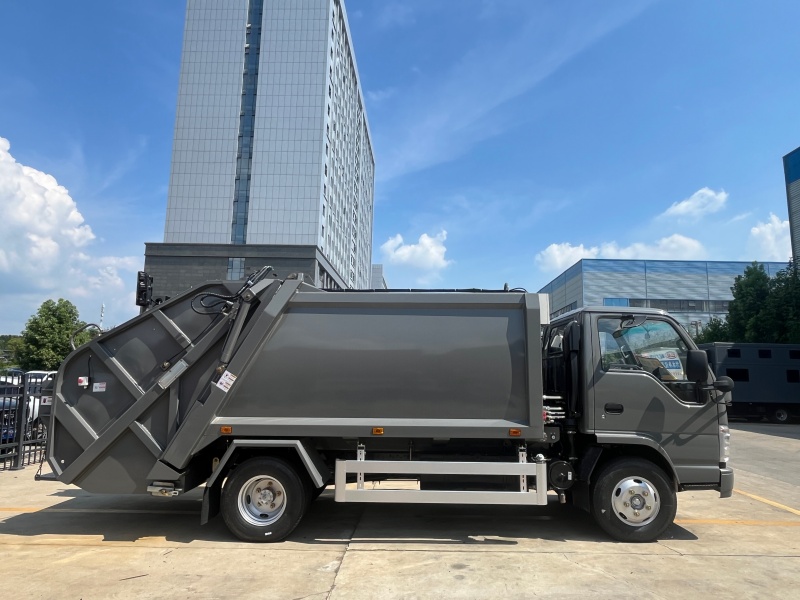

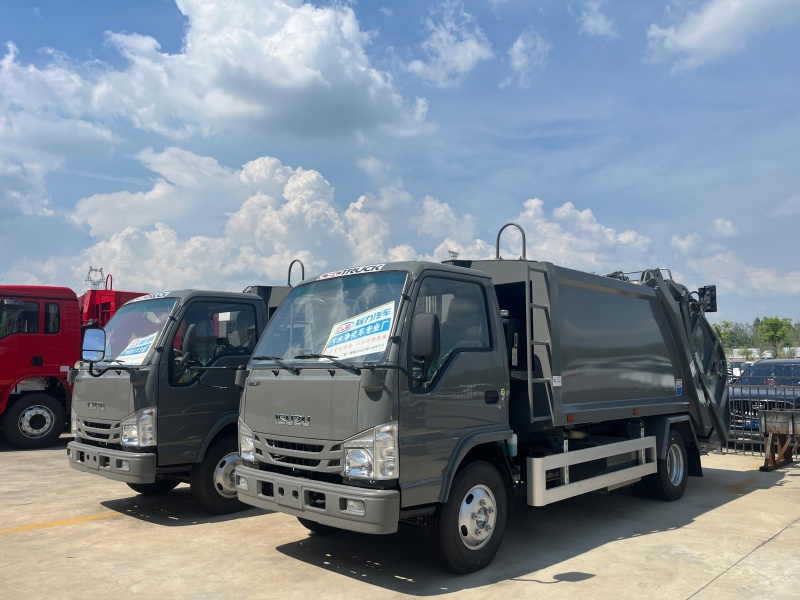

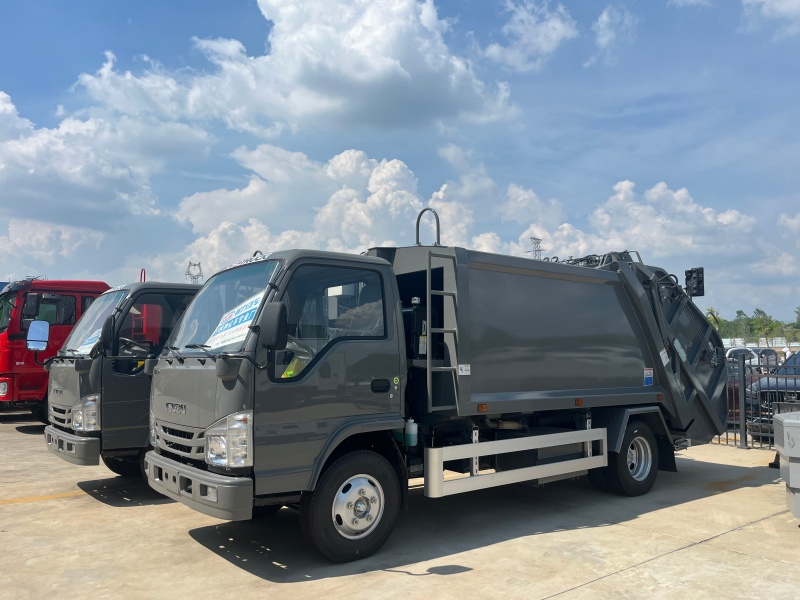

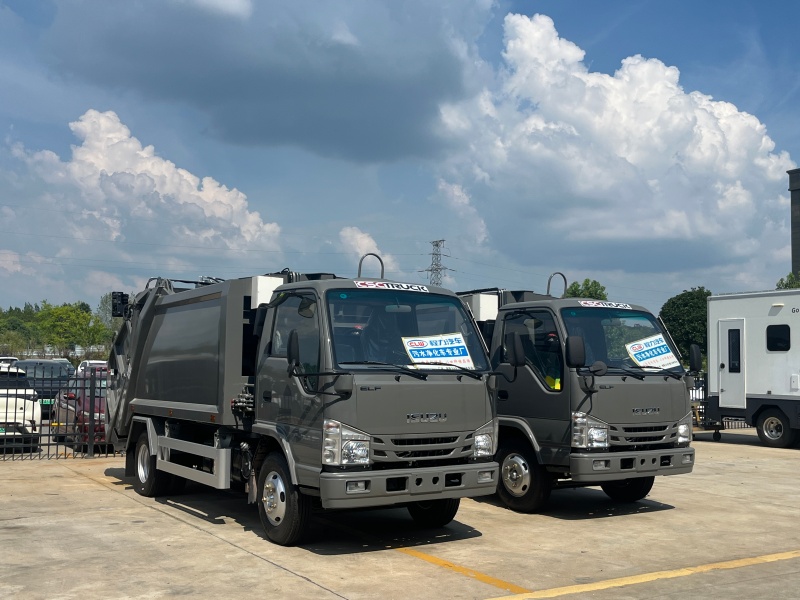

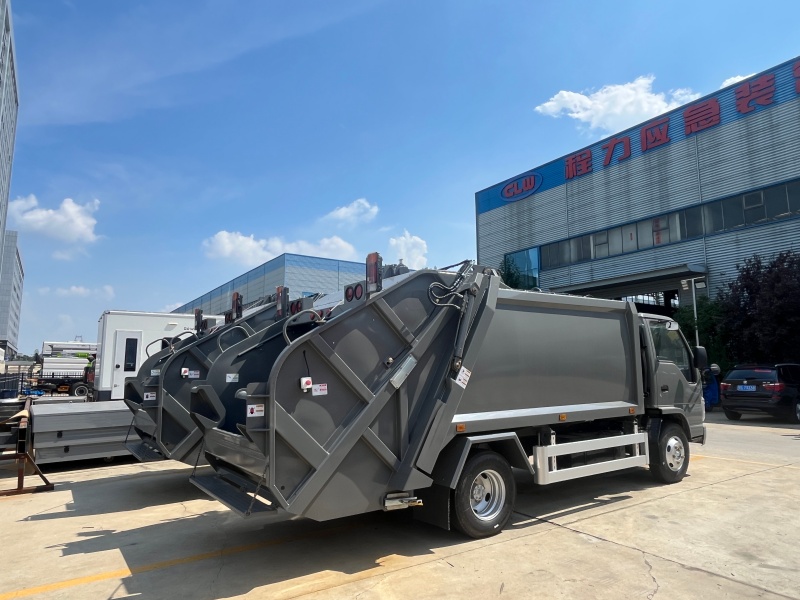

ISUZU 100P 5-6cbm Waste Compactor Truck 4x2 Compression Garbage Truck

Load capacity: 5000-6000L

Chassis: ISUZU 100P, 4x2

Emission standard: Optional Euro 3, Euro 4, Euro 5, Euro 6

Steering wheel: LHD

Product description

1> ChengLi Special Automobile Co., Ltd. is a famous professional and biggest garbage trucks manufacturer in China.

2> We can produce many kinds of garbage trucks, including skip loader garbage truck, compactor garbage truck, garbage collection truck, garbage transportation truck, container garbage truck, hydraulic lifter garbage truck, self-loading garbage truck, arm-roll garbage truck, hanging bin garbage truck, dump garbage truck, hermetic garbage truck, sealed garbage truck, arm shaking garbage truck, etc.

Currently we produce the garbage compactor truck from 4 m3 ~ 20 m3.

Specifications of ISUZU 100P 5-6cbm Waste Compactor Truck 4x2 Compression Garbage Truck:

Item	Parameter
Production name	ISUZU 100P Small Garbage Compactor truck
Vehicle model	CLW5060ZYSQL
Engine	Engine model: 4KB1-TCG60
	Engine manufacturer: Isuzu diesel engine
	Exhaust: 2499ml
	Power: 96kw
Chassis model	QL1070
Tire	Tire specification: 7.00R16
Tire	Number of tire: 6
Axle	Number of axles: 2
	Axle-load: 2580/4720
	Wheel base(mm):3360
Traction system	4x2
Tank fact cubage(cbm)	5-6
GVW(kg)	7360
Curb weight(kg)	5400
Overall dimensions(mm)	6470×2050×2570
F / R track base(mm)	1506/1466
F/R overhang(mm)	1040/2122
Approach/departure angle(°)	20/12
Max speed(Km/h)	95
equipment	1> Equipped with hermetic dustbin, hydraulic system and operating system; 2> Hermetic dustbin: side 4mm, bottom 4mm carbon steel; 3> Automatic compress and uninstall; 4> Optional: Rear hanging bucket or small landing bin to turn.
Product cycle	20-25 working days
