LED screens: P4/P5/P6, 1 side, 2 sides or 3 sides
Generator: Yihu gasoline generator
Chassis: FOTON V1, 4x2
Transmission: 5-speed manual
Emission standard: Euro 3, Euro 4, Euro 5, Euro 6
Steering wheel: LHD / RHD

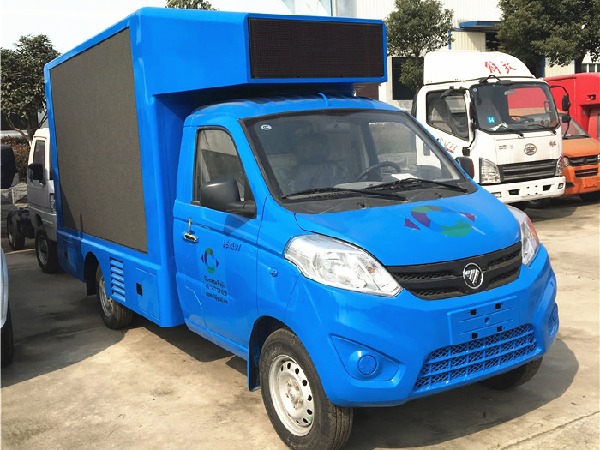

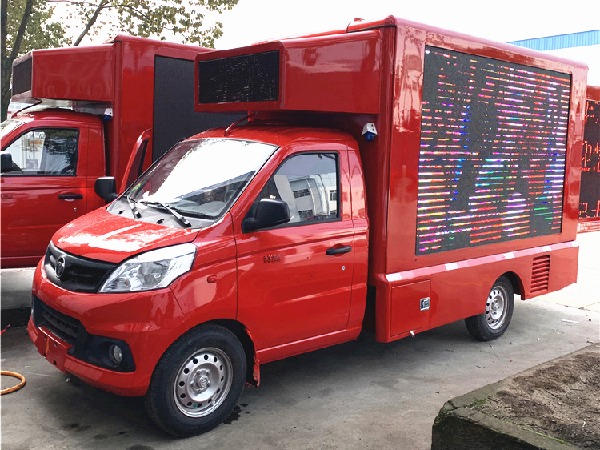

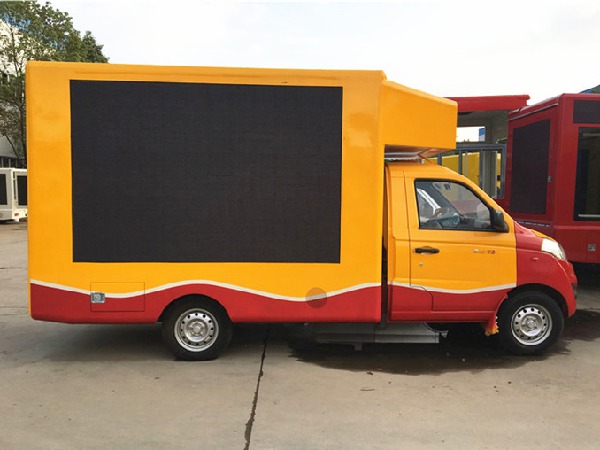

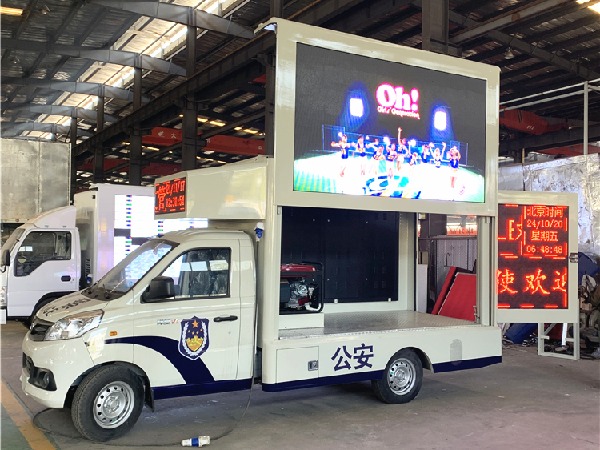

Mobile LED advertising truck is also named as LED display truck, digital billboard trucks, LED advertising vehicles, LED billboard truck, mobile led screen truck, mobile truck LED display, Outdoor LED TV truck, Movie Truck. etc. It is widely used for outdoor commercial advertising, outdoor roadshow, stage rental, traffic advertising, mobile truck advertising, outdoor campaigns, sports stadium advertising, live shows, etc.
Standard equipment: One side waterproof P4/ P5/ P6 full color led screen. The other side advertising light box with subtitle. The rear side monochrome screen to display text.
Optional: 1-side, 2 sides or 3 sides full-color led screens. Brightness can be adjusted automatically according to different surrounding.
Specifications of FOTON 4x2 Mini LED Advertising Truck:
|
Classification |
Item |
Unit |
Parameter |
|
Vehicle |
Vehicle model |
|
CLW5020XXCB6 led advertising truck |
|
Manufacturer |
|
ChengLi Special Automobile Co.,Ltd |
|
|
Overall dimensions |
mm |
5100×1710×2640 |
|
|
Curb weight |
kg |
2415 |
|
|
Traction system |
|
4×2 |
|
|
Max speed |
km/h |
100 |
|
|
Chassis |
Chassis model |
|
BJ1030V4JV5-01 |
|
Manufacturer |
|
Beiqi Foton Motor Co., Ltd. |
|
|
Number of axles |
|
2 |
|
|
Wheel base |
mm |
3070 |
|
|
Tire specification |
|
175R14LT 8PR |
|
|
Number of tires |
|
4 |
|
|
F/R track base |
mm |
1338 /1375 |
|
|
Engine |
Engine model |
|
DAM15KR |
|
Manufacturer |
|
Harbin Dongan Automobile Power Co., Ltd. |
|
|
Fuel type |
|
Gasoline |
|
|
Power |
kw |
85 |
|
|
Engine horse power |
hp |
115 |
|
|
Displacement |
ml |
1498 |
|
|
emission standard |
|
Euro 6 |
|
|
Driver’s cab |
Brand |
|
Foton |
|
Model |
|
Pointy head, single row |
|
|
Allowable seats |
|
2 |
|
|
Steering |
|
Left hand drive |
|
|
Transmission |
|
5-speed with over drive |
|
|
Operation control system |
|
Electrically hydraulic control |
|
|
Air-conditioning |
|
Optional |
|
|
Standard equipment |

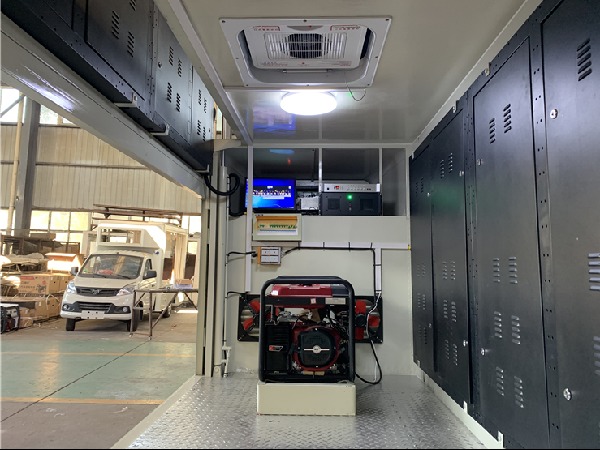

1> One side waterproof P5 full color led screen; 2> The other side glass advertising light box with subtitle; 3> The rear side monochrome screen to display the text; 4> 5> Inside and outside the electric distribution box; 6> Loop ventilation cooling system; 7> Yihu gasoline generator; 8> One industrial computer with control system, 4 waterproof speakers, 1 amplifier, 1 console. |
||
|
Color &Painting |
According to customer’s requirements |
||
