Wrecker truck is also called the road wrecker, wrecker tow truck, road recovery towing truck, platform tow truck, flatbed tow truck, towing truck, road rescue vehicle, towing tractor wrecker truck, car towing truck, tow truck and etc.
Heavy duty wrecker towing trucks are a type of wrecker, also known as large wreckers and heavy-duty road wreckers. They are mainly used for rescue, clearing, lifting and hoisting of highways and other road accidents of vehicles.Rescue work such as towing, to ensure the smooth flow of roads and towing the faulty vehicles from the scene.

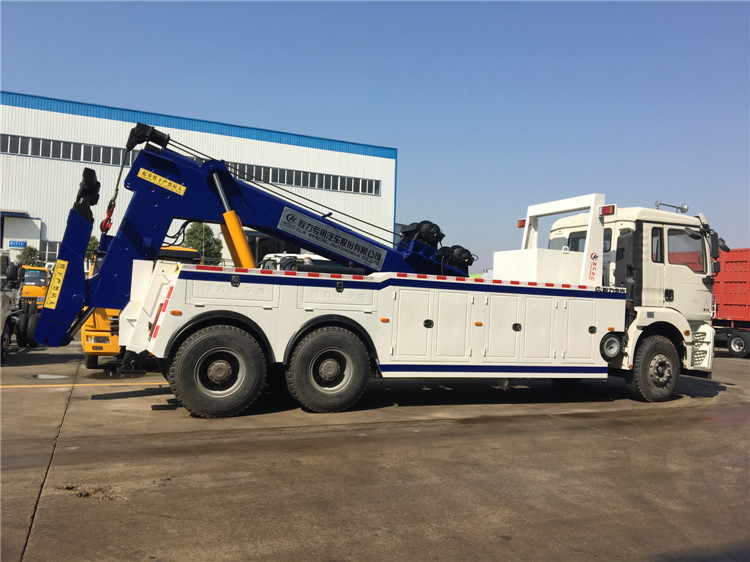

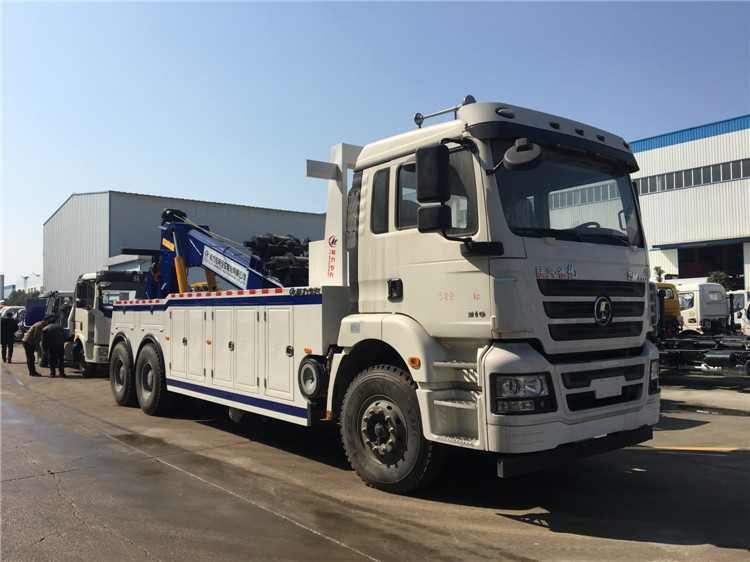

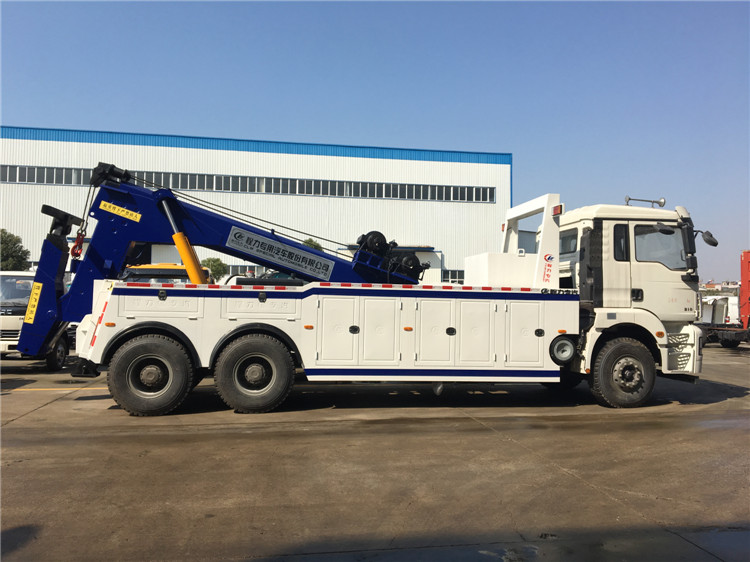

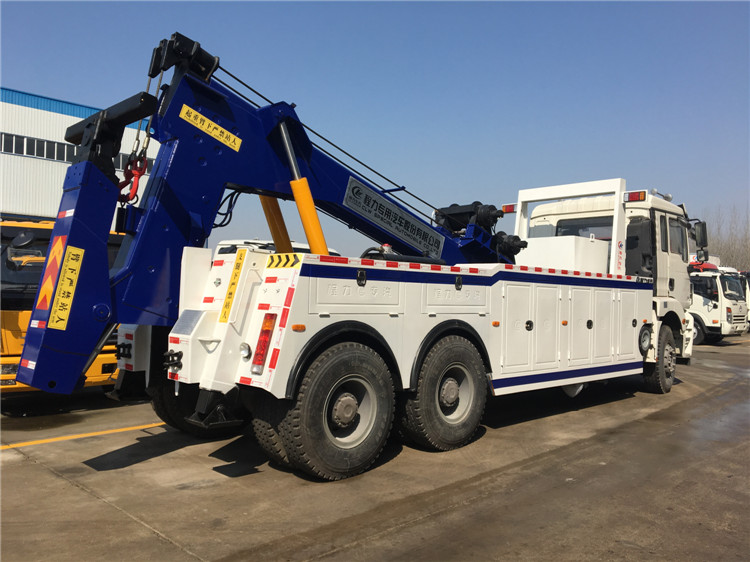

The heavy-duty wrecker truck consists of a heavy-duty vehicle chassis, a 360-degree rotating hoist system, a rear lift traction system, a hydraulic component system, a winch, an electric control system, a wrecker body, and a vehicle-mounted tool. With lifting function, dragging function, traction function and warning, lighting function.
|
Special Function Introduction: |
||
|
Max. traction mass **牵引质量（kg） |
≥30000 |
|
|
Max. lifting weight **托举质量（kg） |
16000/9000 |
|
|
Full extension of maximum lifting capacity 全伸出**托举能力（kg） |
12500/6500 |
|
|
In-situ lifting quality 原地托举质量（kg） |
20000 |
|
|
Effective lifting length 有效托举长度 （mm） |
1460～3599 |
|
|
Support arm telescopic stroke 托臂伸缩行程（mm） |
1639 |
|
|
Lifting arm tilt angle 托举臂上倾斜角（0） |
+7 |
|
|
Lifting arm lower tilt angle 托举臂下倾斜角（0） |
-7 |
|
|
Folding angle折叠角度（0） |
-7～93 |
|
|
Full retraction of the upper surface of the cross arm from the ground 全缩回十字臂上表面离地**距离（mm） |
≮900 |
|
|
Max. lifting mass**起吊质量（kg） |
20000 |
|
|
Fully extended maximum lifting mass (kg) (when minimum elevation angle) 全伸出**起吊质量 (kg)（**小仰角时） |
4500 |
|
|
Max. arm length**臂长（mm） |
8470 |
|
|
Cylinder telescopic stroke油缸伸缩行程（mm） |
3300 |
|
|
Max. lifting height**起吊高度（mm） |
5400 |
|
|
Lift angle举升角（0） |
5.0～33 |
|
|
Quantity数量（只） |
2 |
|
|
Rated traction额定牵引力（kN） |
100×2 |
|
|
Wire rope diameter钢丝绳直径（mm） |
φ18 |
|
|
Wire rope length钢丝绳长度（m） |
45×2 |
|
|
Wire rope minimum line speed 钢丝绳**小线速度（m/min） |
5 |
|
