Bulk feed truck is also called feed truck, feed tank truck, bulk feed transport vehicle, bulk feed delivery truck, bulk feed transporter truck, etc. It is a special transport vehicle made of high-quality, high-strength steel plate welded forming tanks and equipped with electric or hydraulic auger unloading system on the basis of various types of trucks or second-class chassis. Bulk feed truck consists of the chassis, the loaded feed tank, the discharge auger system and the electro-hydraulic operating system.
Optional feed tank capacity: 12cbm to 40cbm bulk feed truck, 40cbm to 60cbm bulk feed trailer.
Optional quantity of compartments: 2-5 warehouses, 3 warehouses as our standard.
Optional brands of chassis: Dongfeng, FOTON, JAC, SHACMAN, HOWO bulk feed trucks for choose.
Discharge method: Electric or hydraulic screw conveyer discharge system, electric can be powered by a generator.

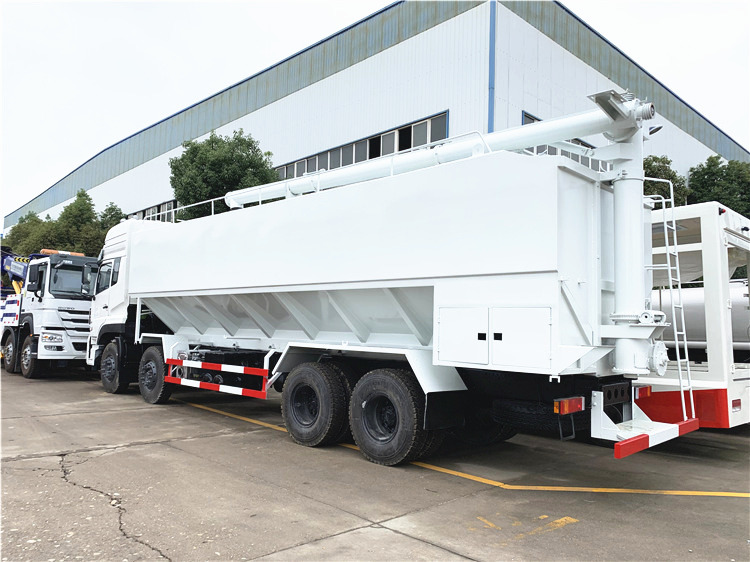

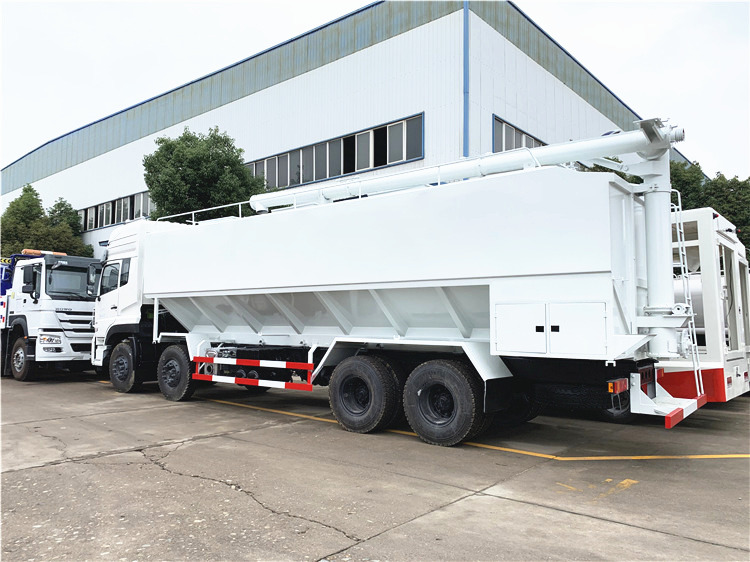

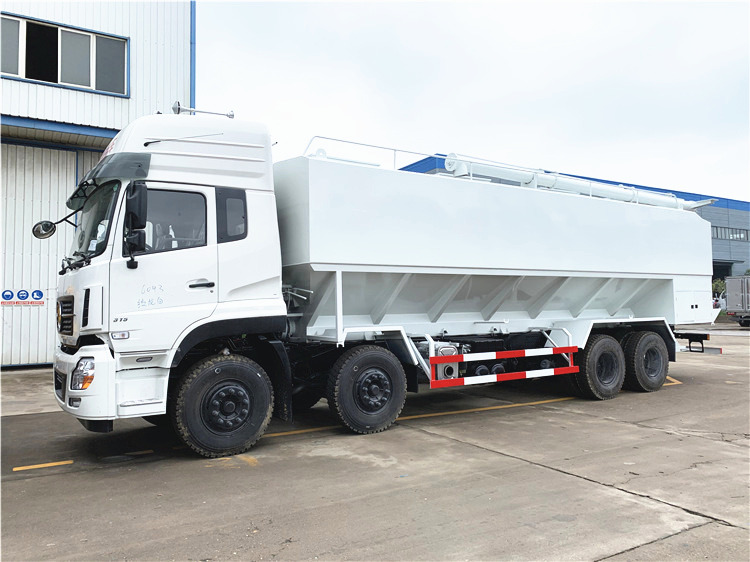

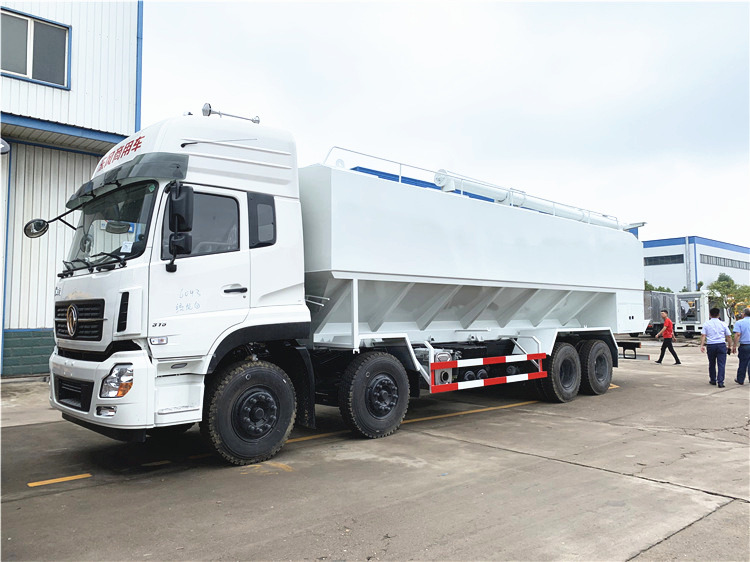

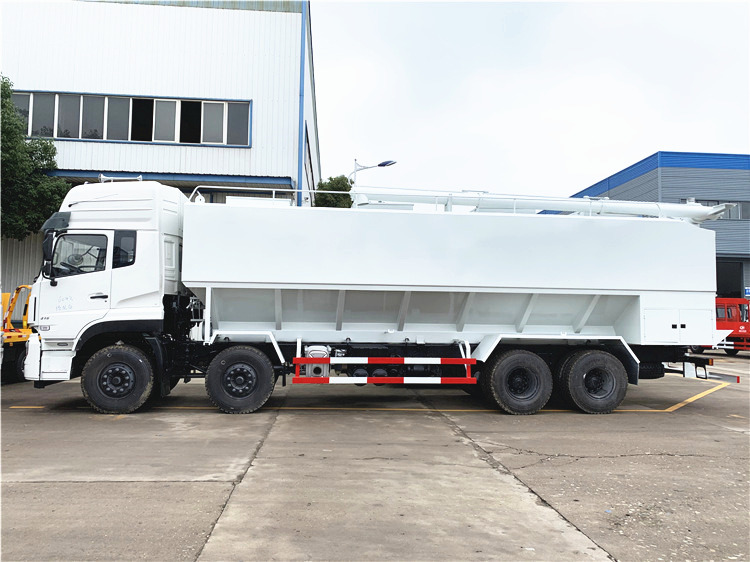

Specifications of Dongfeng Kinland 8x4 40m3 Bulk Feed Truck:
Item | Parameter | |
Vehicle Main parameter | Vehicle model | CLW5311ZSLD5 bulk feed truck |
Cab type | Dongfeng single sleeper cab, flat proof, air conditioning | |
Overall dimension(L×W×H)(mm) | 12000×2500×3995 | |
Axle number | 4 | |
Drive type | 8x4 | |
Steering type | LHD with hydraulic power steering | |
Max. Drive Speed (km/h) | 90 | |
Curb weight (kg) | Approx 15870 | |
Chassis parameter | Chassis model | DFH1310A1 |
Chassis brand | Dongfeng | |
Transmission | Manual ,10 speed forward and 2 reverse | |
Brakes | air brake | |
Tire | 11.00R20, 12 with 1 Spare tire | |
Engine parameter | Engine brand | Dongfeng Cummins |
Model | ISL9.5-315E51A | |
Fuel type | Diesel | |
Horse Power(kw)/(hp) | 232(315p) | |
Displacement(ml) | 9460 | |
Emission Standard | Euro 5 | |
Superstructure Parameter | 1. Transport Medium | Kinds of bulk feed |
2. Main composition | Chassis, feed silo, feed inlet, discharge auger system, operation electric hydraulic system, etc. | |
3.Tank volume(m3) | 40m3/ 20ton | |
4.Tank material | High quality carbon steel | |
5. Warehouse | With 4 units separate warehouses to load different kinds of feed | |
6. Discharger type: | Electric auger, optional hydraulic auger or 24kw diesel generator with additional cost | |
7. Performance parameter: | (1).Average discharge rate(kg/min):500-600; (2).Discharge system rotation angle:360 degree ,system elevation angle:60 degree; (3).Maximum horizontal distance:6m, Vertical distance:7m-8.5m | |
Product cycle | 35-40 working days | |
