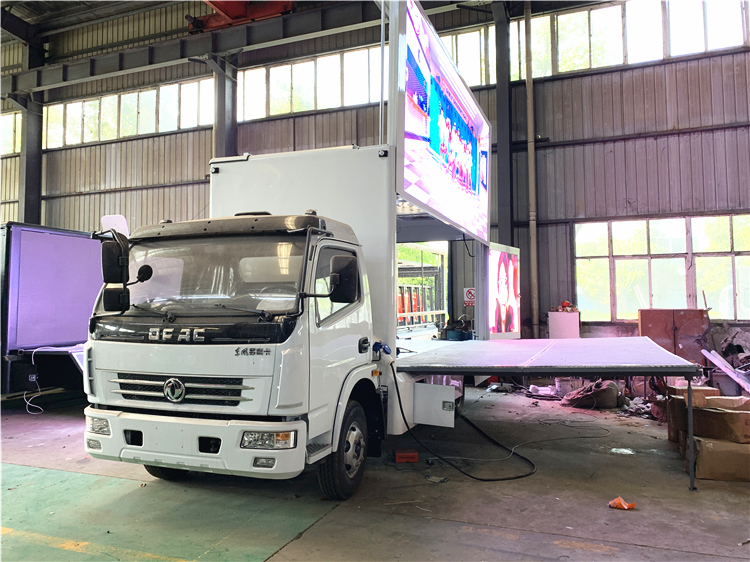

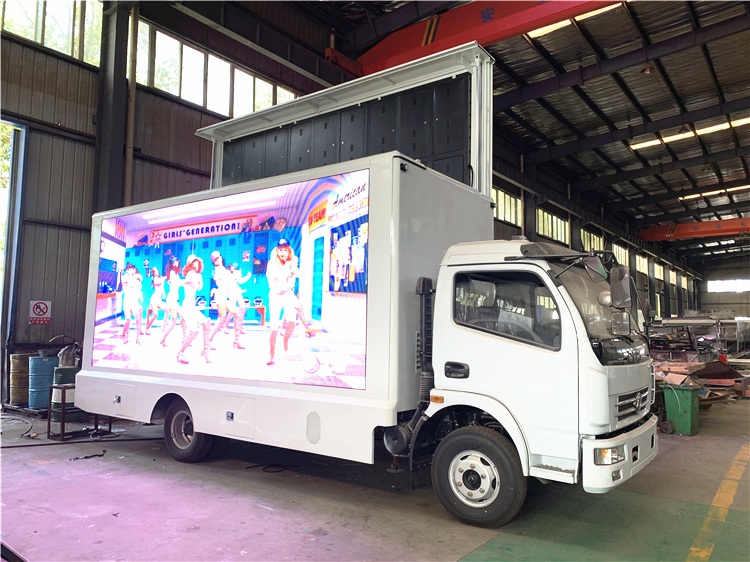

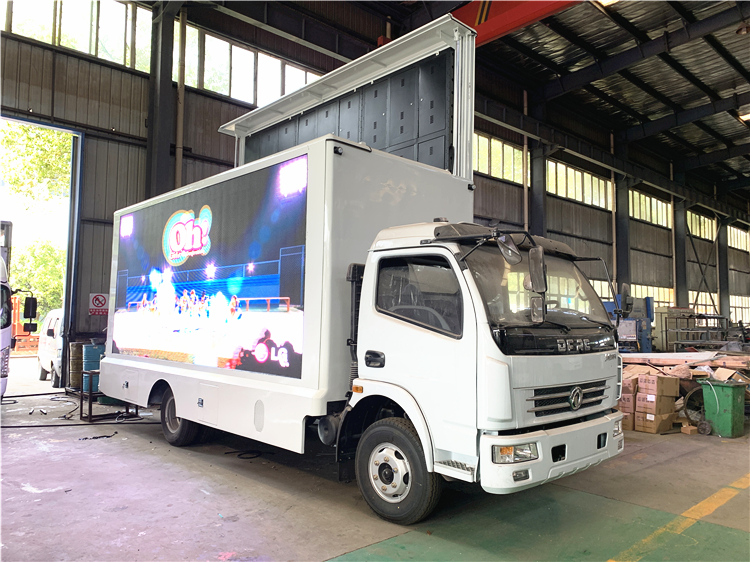

Mobile LED advertising truck is also named as LED display truck, digital billboard trucks, LED advertising vehicles, LED billboard truck, mobile led screen truck, mobile truck LED display, Outdoor LED TV truck, Movie Truck. etc. It is widely used for outdoor commercial advertising, outdoor roadshow, stage rental, traffic advertising, mobile truck advertising, outdoor campaigns, sports stadium advertising, live shows, etc.
Standard equipment: One side waterproof P4/ P5/ P6 full color led screen. The other side advertising light box with subtitle. The rear side monochrome screen to display text.
Optional: 1-side, 2 sides or 3 sides full-color led screens. Brightness can be adjusted automatically according to different surrounding.
Specifications of Dongfeng DLK 4x2 LED Advertising Truck:
Classification | Item | Unit | Parameter |
Vehicle | Vehicle model |
| Dongfeng DLK led advertising truck |
Manufacturer |
| Cheng Li Special Automobile Co.,Ltd | |
Overall dimensions | mm | 7290×2330×3350 | |
Curb weight | kg | 7205 | |
Traction system |
| 4×2 | |
Max speed | km/h | 90 | |
Chassis | Chassis model |
| EQ1090T9ADJ3AC |
Manufacturer |
| DongFeng Automobile Co., Ltd | |
Number of axles |
| 2 | |
Wheel base | mm | 3800 | |
Tire specification |
| 7.50R16 | |
Number of tires |
| 6+1 spare | |
F/R track base | mm | 1770/1586 | |
Engine | Engine model |
| YC4FA120-33 |
Manufacturer |
| GuangXi YuChai Machinery Co., Ltd | |
Fuel type |
| Diesel | |
Power | kw | 88 | |
Engine horse power | hp | 120 | |
Displacement | ml | 4260 | |
emission standard |
| Euro 3 | |
Driver’s cab | Brand |
| DongFeng |
Model |
| Flat head, single row | |
Allowable seats |
| 2 | |
Steering |
| Left hand drive | |
Transmission |
| 6-speed with over drive | |
Operation control system |
| Electrically hydraulic control | |
Air-conditioning |
| Optional | |

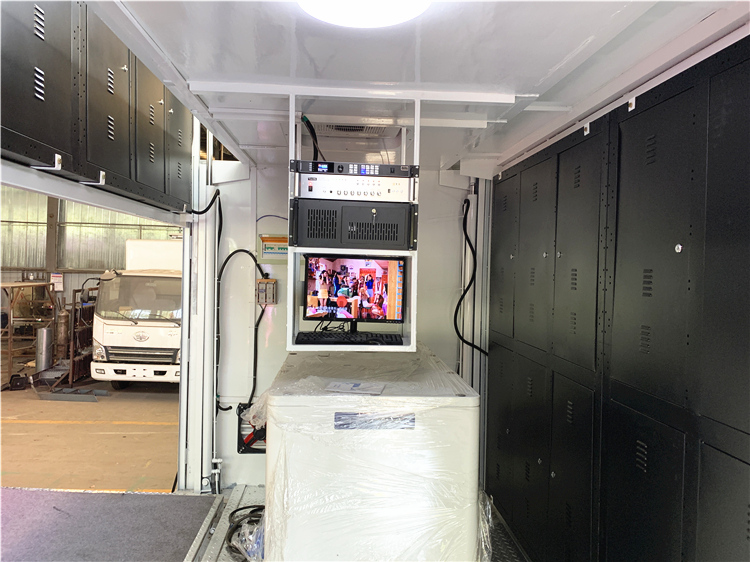

Equipment | 1> 3 sides (left, right and rear) P5 waterproof full color led screen; 2> Both sides hydraulic lifting system for screens; 3> With 4 hydraulic legs and left side 14.5 m2 mobile hydraulic stage; 4> With GREE 1.5P air conditioner in the van; 5> 5cm composite steel box, wooden floor; 6> Inside and outside the electric distribution box; 7> Loop ventilation cooling system; 8> Ouma silent diesel generator; 9> One industrial computer with control system, 4 waterproof speakers, 1 amplifier, 1 console. | ||
Color &Painting | According to customer’s requirements | ||
