Mobile LED advertising truck is also named as LED display truck, digital billboard trucks, LED advertising vehicles, LED billboard truck, mobile led screen truck, mobile truck LED display, Outdoor LED TV truck, Movie Truck. etc. It is widely used for outdoor commercial advertising, outdoor roadshow, stage rental, traffic advertising, mobile truck advertising, outdoor campaigns, sports stadium advertising, live shows, etc.
Standard equipment: One side waterproof P4/ P5/ P6 full color led screen. The other side advertising light box with subtitle. The rear side monochrome screen to display text.
Optional: 1-side, 2 sides or 3 sides full-color led screens. Brightness can be adjusted automatically according to different surrounding.

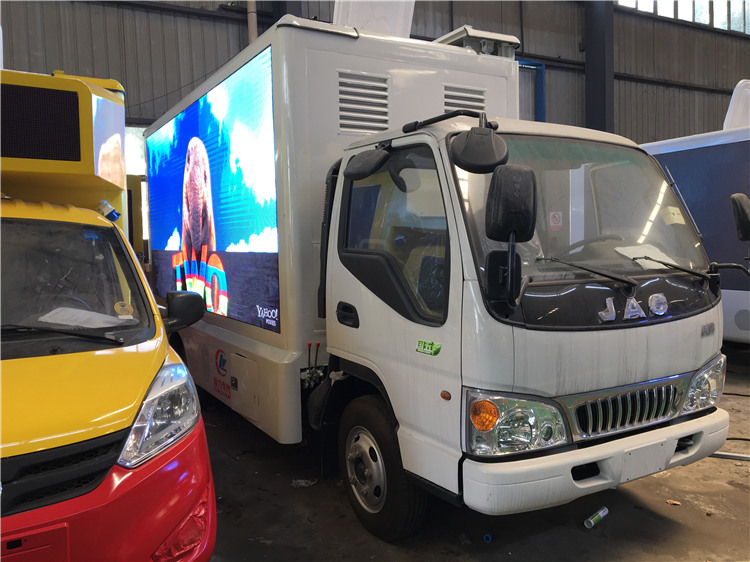

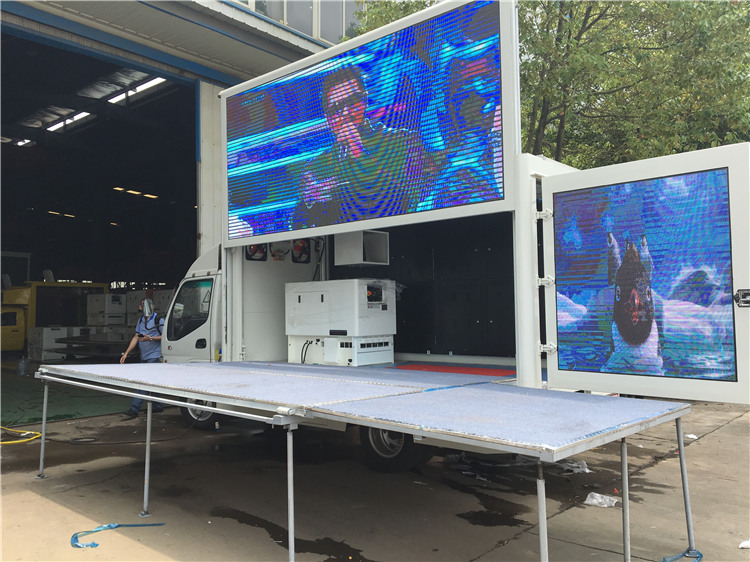

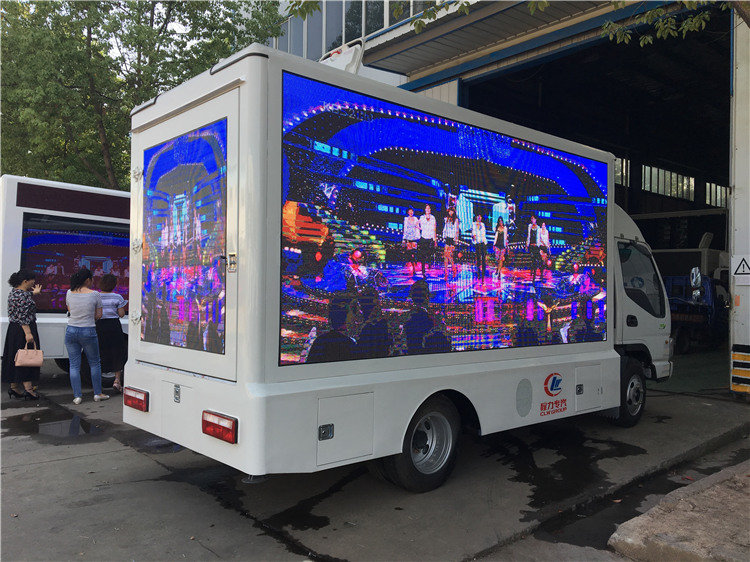

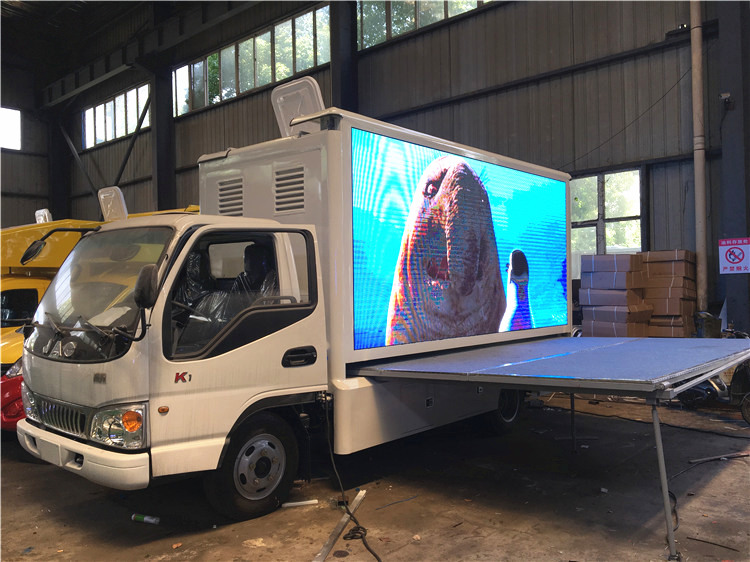

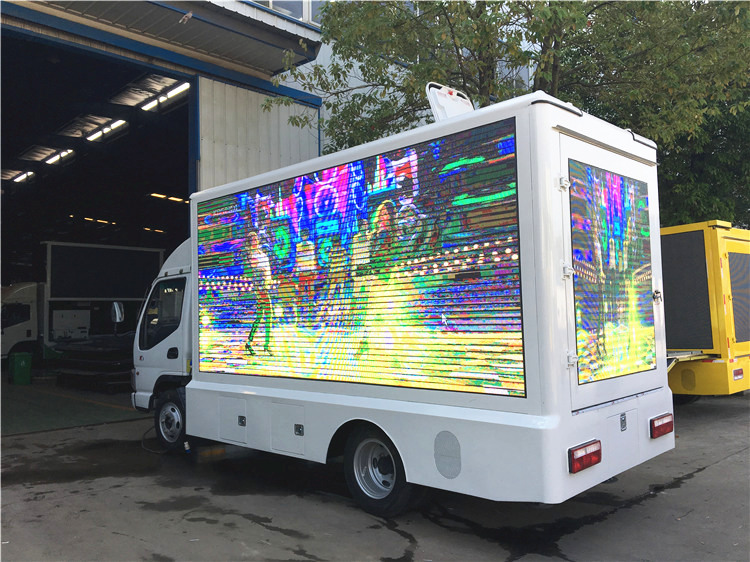

Specifications of JAC 4x2 Mobile LED Advertising Truck:
|
Classification |
Item |
Unit |
Parameter |
|
Vehicle |
Vehicle model |
|
JAC led advertising truck CLW5041XXCH5 |
|
Manufacturer |
|
Cheng Li Special Automobile Co.,Ltd |
|
|
Overall dimensions |
mm |
5995×2020×3060 |
|
|
Curb weight |
kg |
4365 |
|
|
Traction system |
|
4×2 |
|
|
Max speed |
km/h |
90 |
|
|
Chassis |
Chassis model |
|
HFC1041P93K |
|
Manufacturer |
|
AnHui JiangHuai Automobile Co., Ltd |
|
|
Number of axles |
|
2 |
|
|
Wheel base |
mm |
3308 |
|
|
Tire specification |
|
7.00R16 |
|
|
Number of tires |
|
6 |
|
|
F/R track base |
mm |
1440/1395 |
|
|
Engine |
Engine model |
|
HFC4DF1-2D2 |
|
Manufacturer |
|
HeFei JiangHuai ChaoChai Power Automobile Co., Ltd |
|
|
Fuel type |
|
Diesel |
|
|
Power |
kw |
86 |
|
|
Engine horse power |
hp |
117 |
|
|
Displacement |
ml |
2544 |
|
|
emission standard |
|
Euro V |
|
|
Driver’s cab |
Brand |
|
JiangHuai |
|
Model |
|
Flat head, single row |
|
|
Allowable seats |
|
2 |
|
|
Steering |
|
Left hand drive |
|
|
Transmission |
|
5-speed with over drive |
|
|
Operation control system |
|
Electrically hydraulic control |
|
|
Air-conditioning |
|
Optional |
|
|
Standard equipment |
1> 3 sides (left, right and rear) P5 waterproof full color led screen LED screen size(left and right): 3840*1760 mm,
rear 1280*1440mm. 3> Inside and outside the electric distribution box; 4> Loop ventilation cooling system; 5> Omar silent diesel generator; 6> One industrial computer with control system, 4 waterproof speakers, 1 amplifier, 1 console. |
||
|
Color &Painting |
According to customer’s requirements |
||
